Heinkel He-111 H-6 Plans

Heinkel He-111 H-6 Blitz Bomber

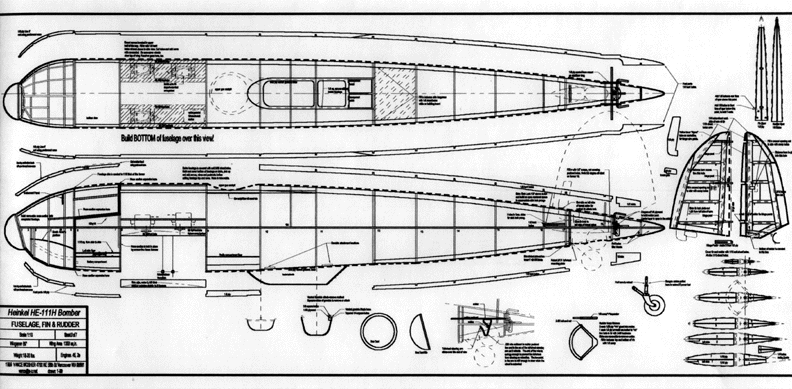

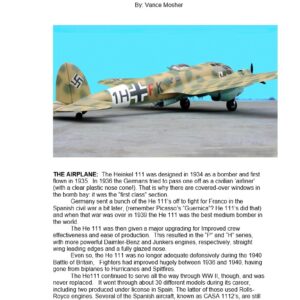

These plans are drawn from a 3-D wire frame, so the parts fit.  Every piece and installation method is shown on the plans.  The drawings include control runs, servo mounts, tail wheel steering, servo lead guide tubes, air tank access, etc.  All surface disassembly methods are shown.  A full-size drawing of all the windows is included.

The lower gun gondola is removable, and the mounting method is shown. The external bomb rack shapes are shown, as are the outlines for the torpedoes used.  The wheel well door hinges are on the plans, and the actuation is described in the instructions.

All building jigs are shown on the plans.  Engine exhaust manifolds that fit inside the cowlings and exhaust ducting and components are shown on the plans.  Exhaust pipes are detailed on the plans, too.

An easy-to-fly twin, with a dual torpedo or bomb drop.  Fuselage, wing center section, wing outer panels, and tail surfaces disassemble for transport.  All control surfaces are removable.  Cockpit and nose remove for interior detailing.  Upper gun turret slides and removes for detailing.  Lower gun gondola removes for handling and detailing.  All engine systems and fuel tanks are accessible for servicing
Low wing loading for gentle flying.  Fully enclosed engine cooling is provided for, and it works.  Can be converted to electric flight.

Major H model variations are shown on the plans. The aircraft can be easily converted to the "P" model by changing the location of the supercharger air intakes.  (These are molded separately on the fiberglass cowlings.)

Specs:

• Scale: 1:10
• Wingspan: 89"
• Wing Area: 1353 sq in
• Weight: 20lbs
• Engines: two .50's
